Shown in Raw Brass

12V Composite In Ground Well Light w/ Cast Brass One Leaf Cover - N.S.C

BRAND
AQLIGHTING
Weight
3.75 LBS
SKU
PGC3B-MONO-NSC
$59.98
Fixture Quantity
# of 3FT Jumpers
# of 6FT Jumpers
# of 15FT Jumpers
# of 30FT Jumpers
# of 3FT Power Connectors
# of 15FT Power Connectors
# of 30FT Power Connectors
# of T Connectors

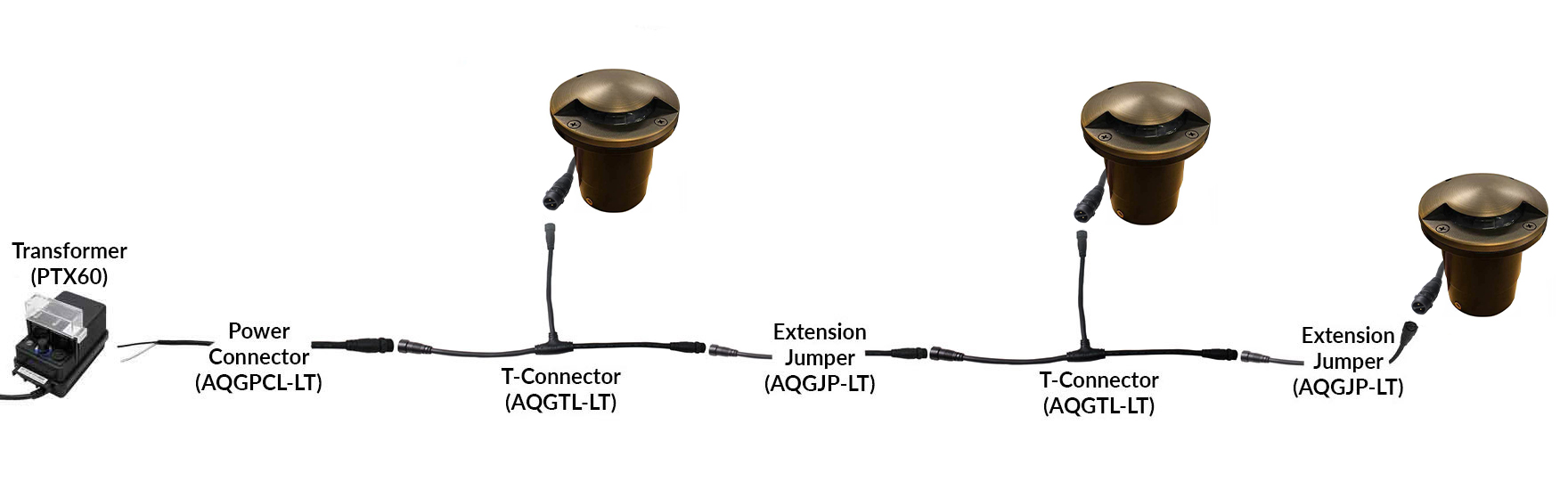

N.S.C. System Connection Example

NSC Wiring System Connection Sample

Using high grade materials, the in ground well light is built to be a long lasting fixture. Solid composite material makes for the body of this fixture, making it lighter and more durable than aluminum. You also won't have to deal with rust or corrosion like you would with an aluminum fixture. The key feature of our in ground well light is the mono-directional cast brass cover that allows for a specific directional output. Our mono-directional in ground light comes with a watertight flat tempered glass lens which will minimize dried condensation on your in-ground well pathway light. The low voltage in ground pathway lights have been designed for installation either directly in the dirt or for long lasting applications directly in concrete. We recommend using our ABS composite concrete sleeve for pathway or concrete applications.

N.S.C. Retrofit Adapter Diagram

NSC Retrofit Wiring Diagram

To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!


Mono-Directional Design

Our new Mono-directional cover design is ideal for walkways and pathways that need a single directional lighting. Constructed from cast brass, this cover is sure to withstand the brutal conditions of an outdoor environment. We guarantee that it will never rust or corrode during its lifetime.


Adjustable Socket

LED ready, the PGC3B-MONO in-ground well light utilizes an exclusive adjustable UL Certified JC Bi-Pin socket, which is compatible with our brand of MR11 and MR16 light bulbs.

No Splice Connection Wiring System Logo

No Splice Connection Wiring System

AQLighting's N.S.C System will save you a lot of time and money with its easy to install wiring. Each point of contact is tool-free, watertight, and can be connected in ~5 seconds. Also, should you desire more light fixtures in the future, the system is easily expandable.

Low Voltage Outdoor Yard Lighting

Low Voltage Systems are designed to operate on a low voltage transformer.

Included:


  • 1x PGC3B-MONO Fixture
  • 1x Solid Composite Body
  • 1x Bubble Glass Lens
  • 1x Polished Full Cup Mirror Reflector
  • 1x Adjustable Socket (Exclusive Design)

Warranty

One year limited warranty against defects in construction.

Material ABS Composite / Brass Cover
Voltage 12V
Socket Type UL Certified JC Bi-Pin (Adjustable)
Bulb Type MR11 / MR16
Power Rating 35w Max
Mounting In-Ground / Below Grade
Fixture Weight 3.75 lbs.

Dimensions


%%Panel.OutdoorAccessories%%

Frequently Asked Questions

What type of bulb requires this lamp?

This pendant light uses a universal JC BI pin socket which takes any bi pin bulb, with a pin spacing of 4 mm to 6.35 mm. A 2.5 watt MR 11, a 1.5 watt bi pin or even a 20 watt halogen MR16 bulb will fit.

Does this come with its own power cord or do I connect it to a transformer?

This fixture comes standard with a 20" whip with bare wires. For 12 volt applications, you would require a transformer. For more info, please call the AQLighting Tech department at 800-865-7221.
