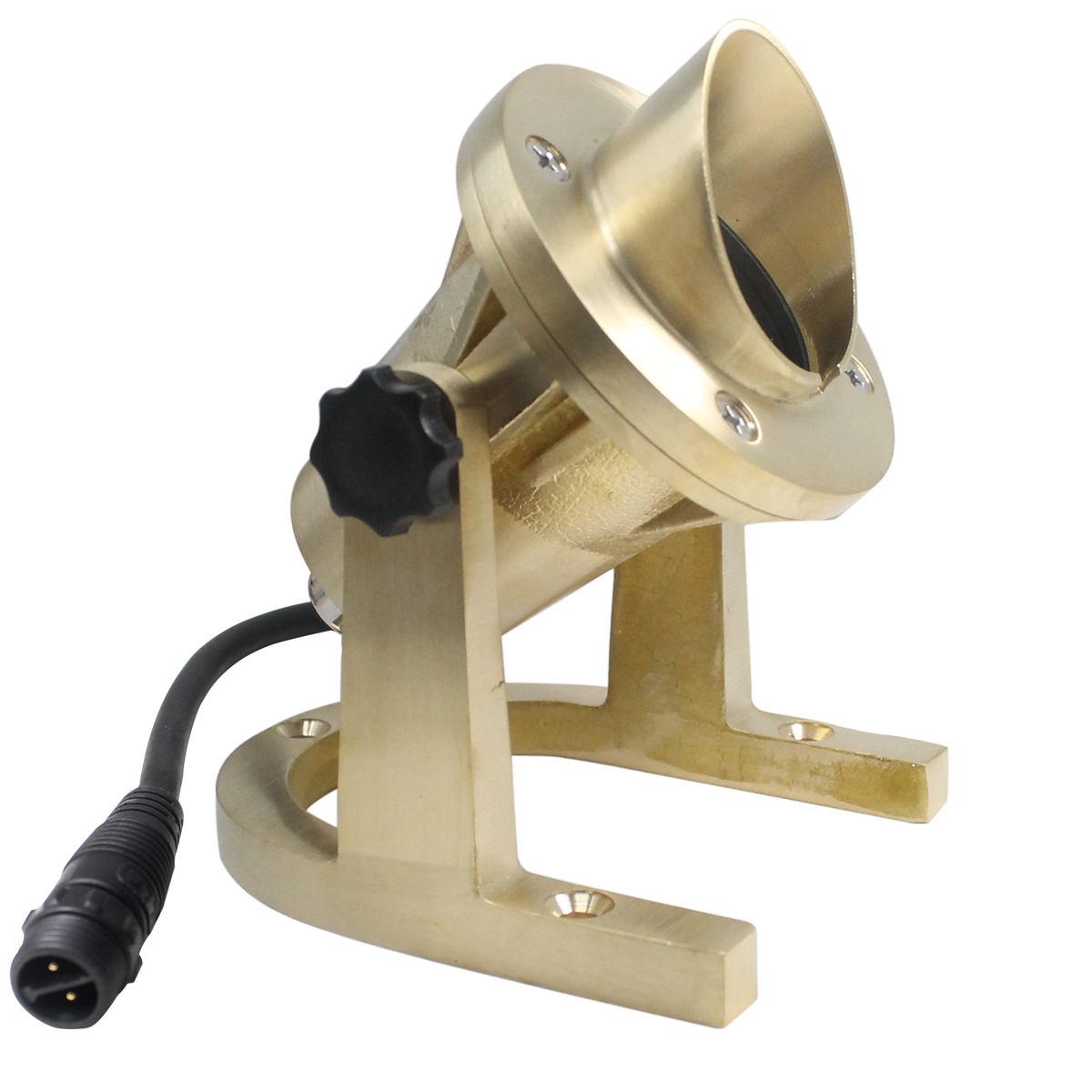

Shown in Raw Brass

LED Low Voltage Underwater Spot Light w/ Glare Shield, Bronze, Raw Brass Finish, No Splice Connect (NSC), Landscape Lighting w/ NSC, Easy DIY Installation - OUWL-0002

BRAND
AQLIGHTING
Weight
5.00 LBS
SKU
OUWL-0002
$99.99
$14.01 OFF
$85.98
Fixture Quantity required
# of 3FT Jumpers required
# of 6FT Jumpers required
# of 15FT Jumpers required
# of 30FT Jumpers required
# of 3FT Power Connectors required
# of 6FT Power Connectors {{AQGPCL-LT3}} required
# of 15FT Power Connectors required
# of 30FT Power Connectors required
# of T Connectors required
# of X Connectors required

Note: For longer runs, some applications may experience Voltage Drop. Click to learn more.

N.S.C. System Connection Example

PUDX-L-003 NSC Wiring System Connection Sample

When it comes to pond or pool lighting, this solid brass LED underwater light is hard to beat. This heavy duty pond light fixture uses the cutting edge NSC wiring system, which significantly cuts down on installation times. In just a single afternoon, you can light up your backyard pond or pool with ease, no cutting or splicing of wires! The solid cast brass construction is perfect for even the harshest outdoor underwater pond LED light projects and the fixture body is mounted to a solid cast brass aiming bracket & surface mounting base.

N.S.C. Retrofit Adapter Diagram

PUDX-L-003 NSC Wiring System Connection Sample

To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!

Heavy Brass Construction

Solid Brass Construction

  • This underwater LED light is made from solid brass that prevents rust and corrosion, protecting against the hazards of the outdoors.
  • The angled shield will concentrate your light in the direction you want while also reducing unwanted glare from the light bulb.
Cast Brass Underwater Fixture

Adjustable Swivel

  • The adjustable swivel allows for full control of your lighting angle.
  • Please be aware that when using underwater fixtures, you must avoid using strong acid chemicals in that body of water as it will destroy the fixtures. For more detailed information, please click here.

No Splice Connection Wiring System

Introducing the No Splice Connection System (NSC): The easiest way to illuminate your landscape! Designed for the average joe looking to enhance their outdoor space with landscape lighting, NSC saves you time and requires no knowledge of connecting wires or lighting applications. Our patented system features threaded male and female adapters, allowing you to effortlessly connect fixtures together. Say goodbye to splicing wires and hello to a simple screw-on technique! With NSC, multiple fixtures can be easily connected, thanks to our T-connector, X-connector, Jumpers, and Power Connects. Available in various lengths, our cables cater to any application. It's plug-and-play, making installation a breeze. No more exposed wires or complex installations! Experience the convenience and simplicity of NSC today. Illuminate your landscape with ease and transform your outdoor space into a stunning oasis. Upgrade to NSC and let your lights shine bright!NSC Connection Close Up

Included:
  • 1x Cast Brass Underwater Spotlight
  • 1x Cast Brass Aiming Bracket (attached)
  • 1x Cast Brass Surface Mounting Base (attached)
  • 1x LED MR16 Light Bulb
Material Cast Brass
Voltage 12V AC/DC
Socket Type GU5.3 JC Bi-Pin
Bulb Type MR16
Power Rating 50w Max
Wiring 8" N.S.C. 2-Pin Lead
Mounting Surface Mounting Base
Dimensions Coming Soon

Dimensions Diagram:


Underwater Spotlight Dimensions

This unit is an NSC light fixture, which means that it offers the same benefits as commercial grade lighting, but without the need for hard wiring. The NSC system uses a water-tight 2-pin connection, each of which is IP68 rated—to ensure wiring is protected and the polarity is consistent.

For more info, please view our NSC article:

The most common cause of damage in submersible pond & fountain lights are due to user error during installation. Therefore, it's crucial to choose high quality submersible lights that offer multiple safeguards and a strong build construction to maximize the fixture's longevity.

For more info, please view our leak prevention guide:

Frequently Asked Questions

Open Face Solid Brass Spotlight

What tips are recommended to preserve the fixtures longer and also be easier to open when their light bulbs go out?

LED bulbs can last a very long time so if this fixture is submerged for multiple years it may be difficult to remove the cover screws. So we recommend using anti-seize on every thread.

Why is there a floating socket?

When the socket is at the bottom of the fixture it is very difficult to install the bulb. You can't get your fingers inside the fixture with a bulb in your hand. Also, it keeps the bulb tight against glass so that you have optimal light output.

How deep in the water can these be placed?

Most underwater fountain lights are rated for up to 1 meter.

If I wanted this in a jacuzzi, how would the heat effect the fixture or wiring?

Pond and fountain lights must be rated to be installed in pools and jacuzzis. A fountain light could be rated for a fountain but not rated for a pool or a jacuzzi so you have to be very careful before installing any luminaire in or near water. All electrical codes must be followed.

For the raw brass finish, what could I apply to the fixture to preserve the look if I wanted to avoid pool chemicals.

Brass will patina to a dark brown color so it doesn't really require any type of sealer or protective coating. With that being said, if there are too many chemicals or if the ph is unbalanced brass can be destroyed. Brass is composed of copper and zinc. The harsh chemicals and ph can actually separate the 2 metals.

How does the water effect the light output for this fixture?

Water diffuses light rapidly so the deeper you place the fixture the brighter the bulb you may want . Keeping a tighter beam spread will also help.
