12V Submersible Brass Underwater Pond Lighting w/ Angle Shield - PU916

12V Submersible Brass Underwater Pond Lighting w/ Angle Shield - PU916

$86.99 $74.99 (You save $12.00)
1 Review
SKU: PU916
1.00 LBS

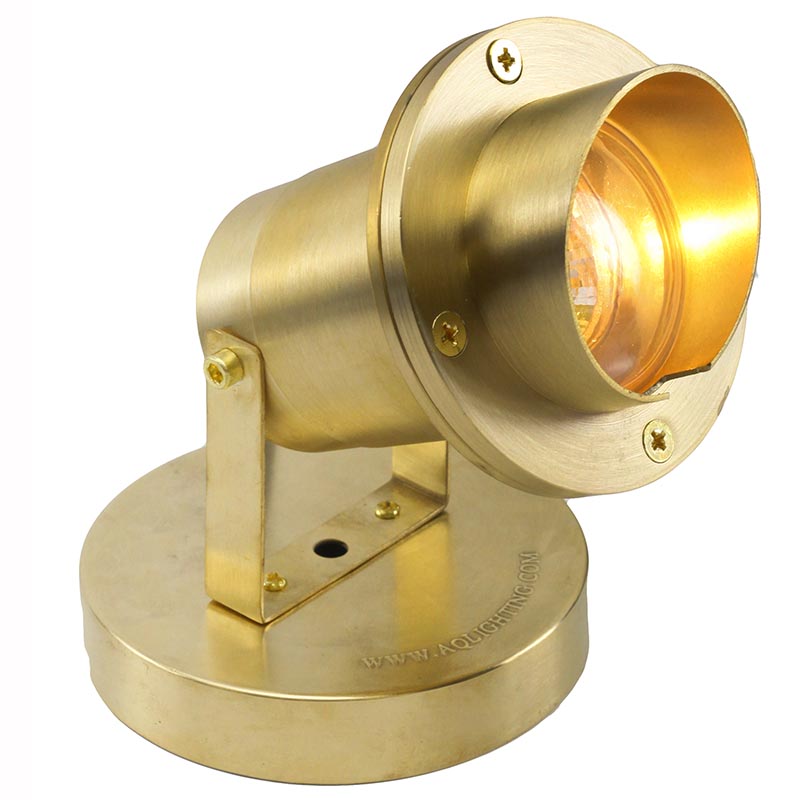

The AQLIGHTING "Deep Diver", heavy duty brass submersible pond light, the PU916 is the ideal solution for discrete, low voltage submerged lighting. The PU916 underwater fixture is designed with an angled shade, hiding the light from direct view but focusing the light onto the object you wish to light. Capable of handling up to 35w of light output, the PU916 fixture is primarily used for spotlighting, moonlighting or accent lighting purposes as we offer both clear and colored halogen MR16 light bulbs. Make the most of the MR16 type light bulbs by going LED, reducing your lighting costs while still maintaining a high amount of LED pond light underwater.

12V Cast Brass Underwater Spotlight PU916 Construction Heavy Duty Brass Construction:
Crafted from high quality heavy duty cast brass, the PU916 underwater fountain light is designed to endure both underwater and out of water for the longest lasting fixture possible. Please be aware that when using underwater fixtures, you must avoid using strong acid chemicals in that body of water as it will destroy the fixtures. For more detailed information, please click here.
12V Cast Brass Underwater Spotlight PU916 Protection Lifetime Guarantee Against Rust or Corrosion:
The PU916 brass underwater light is made from such high grade material that we guarantee it for life never to rust or corrode. A 30' long heavy duty SVT cable is included and runs out of the bottom of the fixture for easy installation.
12V Cast Brass Underwater Spotlight PU916 JC Bi-Pin Socket UL Certified JC Bi-Pin Socket:
LED ready, the PU916 underwater light uses an underwater/outdoor-rated GU5.3 Bi-Pin socket, which is compatible with our line of energy efficient MR11 and MR16 light bulbs.
We are using some of the newest, most efficient and reliable LED's available today for it's LED MR11s and MR16s with over 40,000 hours of life span rating vs less than 2,000 for halogen and a 3,100K color temperature.

AQLIGHTING designs our brass underwater light kits to function on 12V. 12V systems require a low voltage transformer.

  • 1 X Cast Brass Spotlight PU916 Fixture
  • 1 X Braided Heavy Duty Cable
  • 1 X Screw Assembly Parts Pack
One year limited warranty against defects in construction.
Material Cast Brass
Voltage 12V
Socket Type UL Certified JC Bi-Pin(E230758)
Bulb Type MR11 / MR16
Power Rating 75w Max
Mounting Surface
Fixture Weight 2.75 lbs.
This brass underwater light utilizes the same body as the PUDX77. Only the angle shield is different.

Product Dimensions
PU916 Dimesions


Please read this instruction sheet carefully.
Luminaires must be installed in accordance with the National Electric Code (NEC) and local codes. Failure to do so may result in serious injury and/or damage to the luminaire.

SAFETY WARNING: Luminaire can become very hot, depending on lamp wattage used. Lens and metal around the lamp can become hot enough to blister/burn hands. Particular care should be taken not to place luminaires where small children can reach them, especially when high wattage lamps are used.


To avoid electrical shock, turn off the power at the circuit breaker before starting your installation project.


  • Turn off/unplug and allow fixture to cool before replacing lamp.
  • Lamps get hot quickly! Contact only switch/plug when turned on.
  • Do not touch hot lens, guard or enclosure
  • Keep lamp away from amterial that may burn
  • Do not touch the lamp directly at any time. Use a soft cloth. Oil from the skin may damage the lamp when illuminated.
  • Do not operate luminaire fitting with a missing or damaged cover.

NOTE: Always use UL recognized wire connectors.


The most common cause of damage in submersible pond & fountain lights are due to user error during installation. Therefore it's crucial to choose high quality fixtures that offer multiple safeguards from user error and a strong build construction to maximize the fixture's longevity.

For more info, please view our leak prevention guide:
