12V Brass Submersible Open Face Underwater Pond Light - PUDX77

BRAND
AQLIGHTING
Weight
3.50 LBS
SKU
PUDX77
$86.99
$6.00 OFF
$80.99
6 Ratings and Reviews

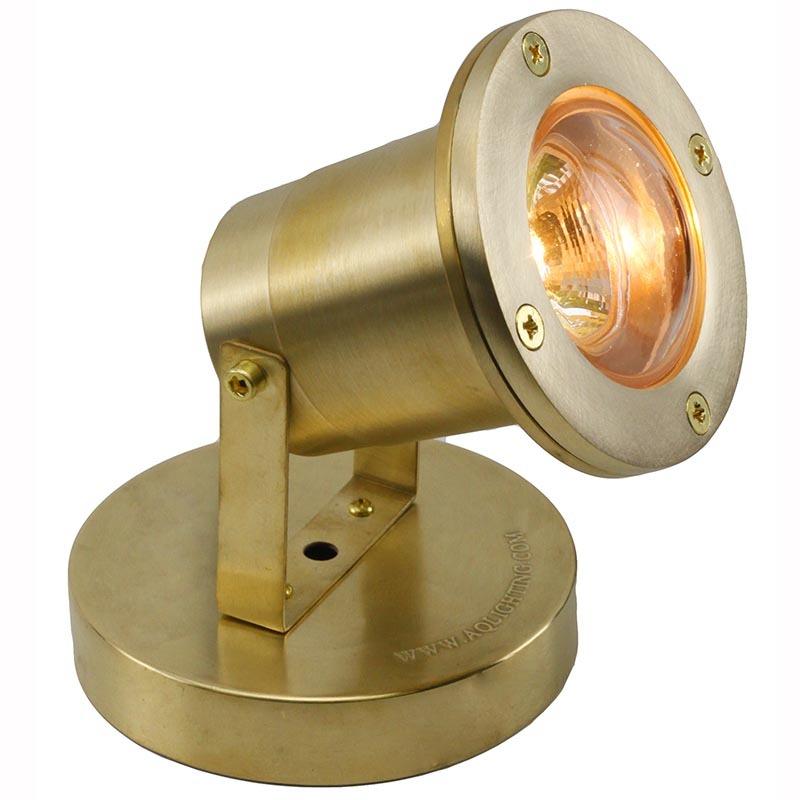

Illuminate your fountain with beauty and style. Constructed from solid heavy duty brass, the PUDX77 designer underwater fountain light is the perfect solution to your submersible lighting needs. Complete with brass surface mounting base, the PUDX77 underwater light is fully adjustable, giving you full control over your submersible lighting. The PUDX77 excels in wall washing, moonlighting, accent lighting, spot lighting or flood lighting. Using the MR16 light bulb platform, the PUDX77 fixture is compatible with a wide variety of light bulbs, clear or colored halogen or LED, which gives you more options with your light output. Pair the PUDX77 low voltage submersible fountain light with LED light bulbs to maximize energy savings.

LED waterproof pond lights have many advantages; AQLIGHTING's series of heavy duty brass underwater light fixtures use the best LED light bulbs on the market. LED light bulbs will last about 50,000 hours, which translates to ~18 years (average 8 hours of operation a day) and will cost you pennies a day due to it's highly efficient design. We take the time to pre-wire all our pond light fixture for your convenience, making the installation process easy and safe.

We offer the highest quality submersible pond lights money can buy, made with the highest quality, heavy duty brass, which makes the PUDX77 pond lights long lifetime fixtures. Our garden pond lights ship with 30 feet of heavy duty SVT cord that exits on the bottom of the fixture, and a solid brass surface mounting base, enabling the fixtures to be placed underwater or surface mounted. The PUDX77 underwater pond lights will transform your yard into a designer landscaped paradise.

The PUDX77 designer low voltage 12V pond lights eliminate the risks associated with 120V and water. Additionally, it will help you save on your power bill due to their extremely low power consumption. All low voltage fixtures require a transformer and we have a wide variety of outdoor rated transformers at incredible prices. You can find our outdoor transformers here and for additional information on the differences between 12V and 120V, please visit our guide here. For additional help, contact our highly trained electricians and lighting specialists here or call us at 1-800-865-7221 and we would happy to assist you in making your underwater lighting selection.


Solid Cast Brass Body, Cover and Mounting Base:


We designed the PUDX77 fixture with longevity in mind. The PUDX77 underwater light is made from solid cast brass materials that will never rust or corrode and protect against the hazards of the outdoors. Please be aware that when using underwater fixtures, you must avoid using strong acid chemicals in that body of water as it will destroy the fixtures. For more detailed information, please click here.

Recessed UL certified socket:


Taking full advantage of the flexibility and light output of the MR16, the PUDX77 unit comes with a fully adjustable, UL certified JC Bi-Pin socket and polished mirror, full cup reflector to maximize light output.

Solid Brass Mounting Base


Solid brass surface mounting base houses the hand adjustable swivel which allows you to control your lighting angle and mount your PUDX77 fixture to any flat surface.

Light Bulb Options


The PUDX77 heavy duty brass underwater fixture is designed to take advantage of the MR16 type light bulb, which we offer in both halogen and LED. Our MR16 halogen light bulbs are offered in both clear and colored options and our MR16 LED is available in cool white or warm white options.
Voltage
Our underwater lights are low voltage fixtures for high efficiency lighting. Pair the PUDX77 fixture with our LED light bulbs for extra energy savings. Low voltage fixtures require a low voltage transformer.

Free Spare Parts Included!
  • 1 X Flat Glass/Gasket Assembly
  • 1 X Screw Assembly Set
Warranty:
Lifetime guarantee not to rust or corrode
  • Solid Cast Brass Construction
  • Lifetime Guarantee not to Rust or Corrode
  • WetSlide™ "Bubble Glass" Allows the water to slide right off the tempered glass
  • LightEcho™ Reflector
  • Extended 30 Foot 16ga UL Certified Shielded Cable
  • Brass Surface Mounting Base
  • Brass Hand Adjustable "Twin" Lock Exclusive Wing-nut Swivel
  • WireGuard™ Bushings - extends the life of the fixture
  • This outdoor underwater light is years ahead of any other unit made!
Material Cast Brass
Voltage 12V
Socket UL Certified JC Bi-Pin (E230758)
Bulb Type MR16
Power Rating 75w Max
Mounting Surface
Brass Weight 2.75 lbs
Product Dimensions:

INSTALLATION PREPARATIONS AND PRECAUTIONS:


Please read this instruction sheet carefully.
Luminaires must be installed in accordance with the National Electric Code (NEC) and local codes. Failure to do so may result in serious injury and/or damage to the luminaire.

SAFETY WARNING: Luminaire can become very hot, depending on lamp wattage used. Lens and metal around the lamp can become hot enough to blister/burn hands. Particular care should be taken not to place luminaires where small children can reach them, especially when high wattage lamps are used.

IMPORTANT SAFETY INSTRUCTIONS


THE LIGHTED LAMP IS HOT!!!
To avoid electrical shock, turn off the power at the circuit breaker before starting your installation project.

WARNING: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS

  • Turn off/unplug and allow fixture to cool before replacing lamp.
  • Lamps get hot quickly! Contact only switch/plug when turned on.
  • Do not touch hot lens, guard or enclosure
  • Keep lamp away from amterial that may burn
  • Do not touch the lamp directly at any time. Use a soft cloth. Oil from the skin may damage the lamp when illuminated.
  • Do not operate luminaire fitting with a missing or damaged cover.

NOTE: Always use UL recognized wire connectors.

LEAK PREVENTION

The most common cause of damage in submersible pond & fountain lights are due to user error during installation. Therefore it's crucial to choose high quality fixtures that offer multiple safeguards from user error and a strong build construction to maximize the fixture's longevity.

For more info, please view our leak prevention guide:

%%Panel.UnderwaterMR16%%
